Product Description
SKD100 automatic reel changer belongs to reverse coiling automatic reel changer. Its main function is to connect the test Handler to realize the functions of automatic reel supply, tape cutting, sealing, automatic replacement.
●Packing equipment test rate of good products : 100 % ( 10h continuous production ) .
●Crop rate : More than 95 % ( calculation method : ( actual output / theoretical output ) * 100 % ).
●Specification change : When the specification changes, just switch the tape and track, easy and simple.
●Tape feeder : Compatible with P2 ( bearing groove spacing 2mm ) and P4 ( bearing groove spacing 4mm ) tape ( can be switched through the software menu ).
●Tray feeder：Cylinder drive brake knife opening and closing control bowl feeder.
●Tray direction judgment station ( standard ) : sensor inspection.
●Tail rubber : Prefabricated yellow tail rubber stacking plate for packaging.
●Reel : Batching pulley buffer group, matching the speed of tape equipment.
●The tape cutting : With the counting optical fiber, the tape is cut.
●Tray ready：The lifting mechanism realizes the automatic stacking of the tray.
Important parts
 |
 |
 |

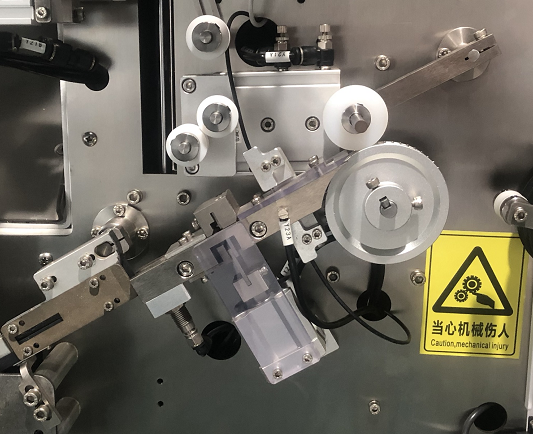

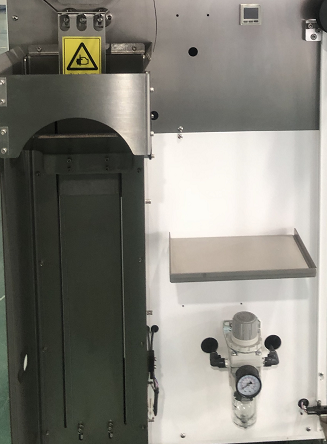

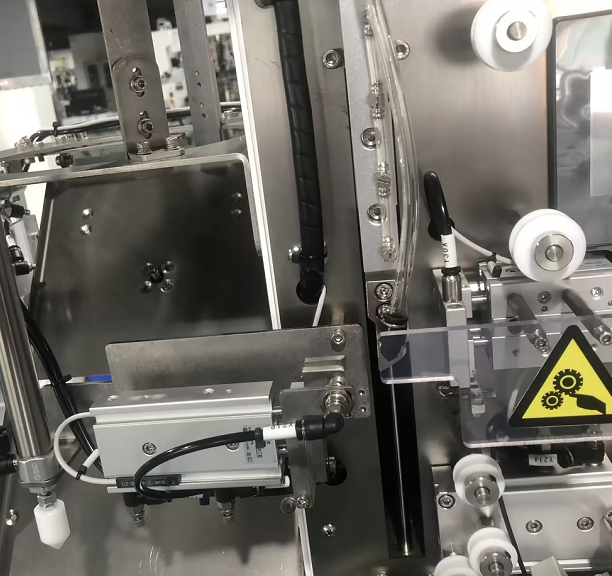

| The number of carrying tapes is counted simultaneously by multiple optical fibers to ensure the accuracy of the number of each disc. | The tail sealing adhesive adopts vacuum adsorption method, which has simpler structure and lower failure rate. | The feeding plate adopts the lifting mechanism to realize the automatic stacking of the feeding plate, which has larger capacity and higher equipment mobility. |
Table parameters
| SKD100 Automatic Reel Changer | |
| Suitable products | 7/13 inch reel |
| Suitable tape | 8mm/12mm width option |
| Tail glue length | 100mm, 150mm, 200mm option |
| Rewinding ability | >15Reels/H |
| Control mode | Human-machine interface+PLC |
| Power | AC220V±10% / 380V 50Hz |
| Pressure | 0.4~0.7MPa |
| Dimensions | 420*420*1800(mm) |
| Weight | 150Kg |
| Optionalfunctions | automatic reel supply, barcode comparison, reeling into a tape, sealing glue, automatic closing, networking MES system and other functions can be selected. |
