SKD936T Turret Test Handler
SKD936T turret test handler for discrete devices, IC devices and other Tray tray in and out of the material, appearance detection, braid, with high-speed test marking braid capability, using high-precision DDR. Integration of marking system and imaging system to bring high quality product output to customers.
Products
Semiconductor Field
Test Sorting Equipment
Contact Us
Product Description
SKD936T turret test handler for discrete devices, IC devices and other Tray tray in and out of the material, appearance detection, braid, with high-speed test marking braid capability, using high-precision DDR. Integration of marking system and imaging system to bring high quality product output to customers.
● Can support Tray to Reel, Bowl to Tray, Tray BIN and other feeding and unloading methods and BIN methods; Low Tray plate of transplanting: automatically in plate, positioning soft smooth, mobile location of high precision products;

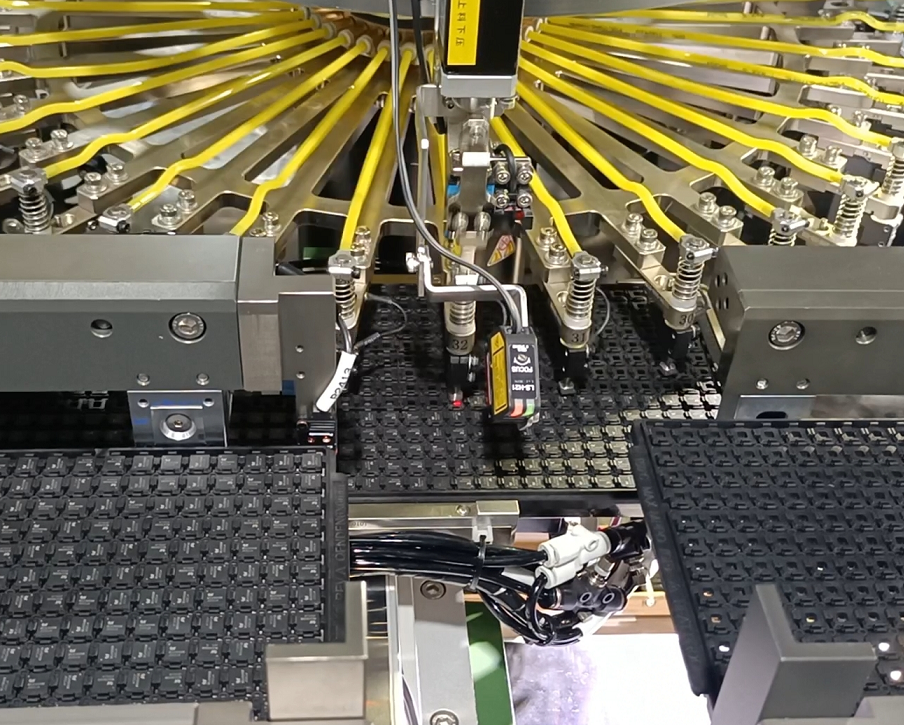

● Low main wheel: the main wheel is equipped with servo motor drive the suction nozzle of 36, can you have your product to each station by adsorption of suction nozzle precise center;
● Low conductivity is/steering device: precision of product positioning and the reversing, positioning error is 0.005 mm, direction accuracy of 0.1 degrees;
● Low marking plate of institutions: marking plate can finish the laser marking, vacuuming, marking the function such as visual inspection, greatly accelerated the hit target speed;
● Low braid components: in addition to simple automatic braid, also added on the function of automatic filling material; Low sealing after imaging function (optional).
Important parts
 |
 |
 |

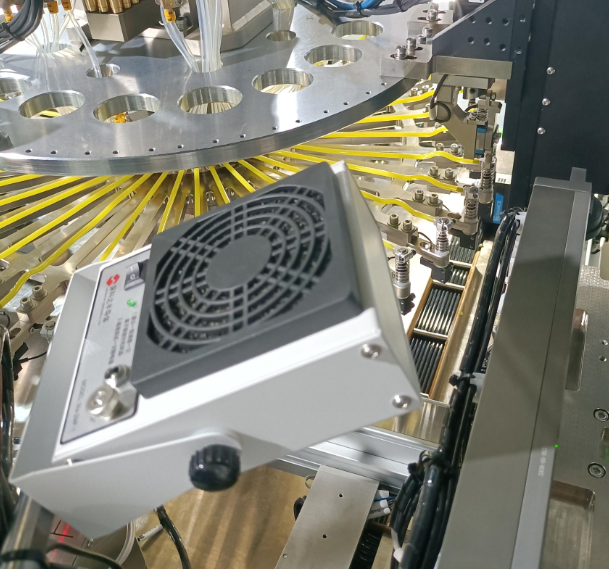

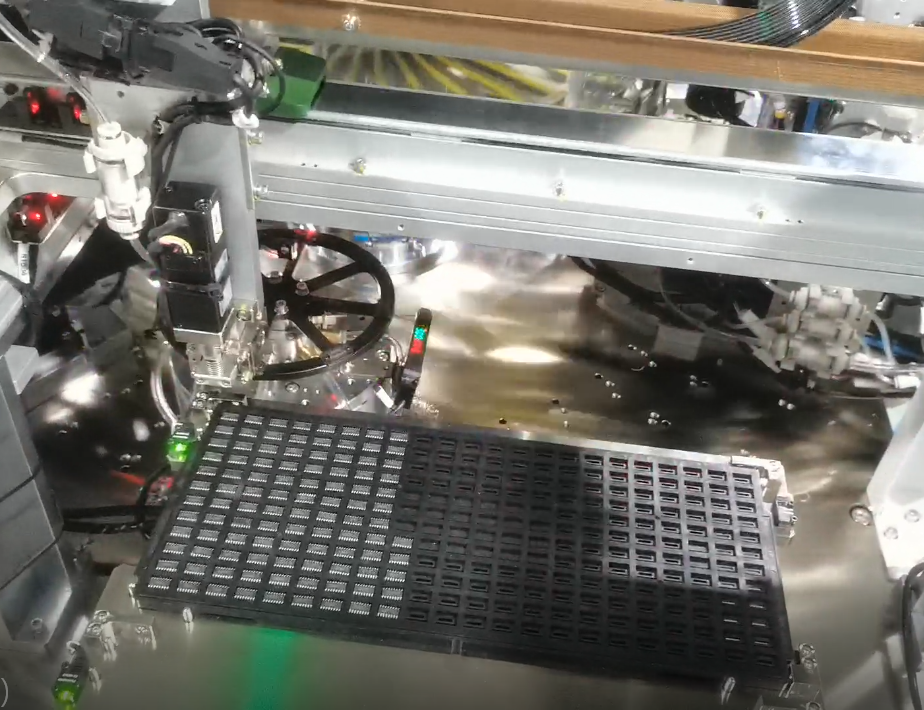

| Tray tray adopts high precision screw and linear guide rail to drive, running smoothly and taking material smoothly | 2 defective products BIN tray, support a variety of discharge methods, XY axis movement accuracy. Use dust-free drag chain to prevent dust generation | Remove static electric fan, eliminate Tray tray and product static |
Table parameters
| SKD936T Turret Test Handler | ||
| Suitable Components | DFN/QFN3X3-11X11、PDFN3X3-5X6、LGA | |
| UPH | Max 10000（test time less than 200ms）(pcs/h) | |
| Test station | supports 6 station testing | |
| Contact type | Pop-up type | |
| Sort | 2-Tray+1 | |
| Loading/Unloading | Tray to reel（tape）/ Bowl to Tray | |
| press-down mode | Servo motor+CAM / imported linear motor / domestic linear motor | |
| Force control accuracy | Force control can achieve ±10% (≥10N) / ±5% (2-10N, support adaptive calibration) | |
| Stability | MTBA>60min MTTA<3min MTBF>168H | |
| Air pressure | Compressed air: 0.4-0.7MPa Vacuum: >65KPa | |
| Power supply | AC220V 50/60Hz | |
| Laser Marker | 10W laser maker：SKDCW10Y-S Minimum letter height：0.3mm Line width：0.045mm-0.06mm；SKDCW10Y-H Minimum letter height：0.2mm Line width：0.02mm-0.03mm | |
| image parameter | Camera and resolution: 1.6 million CCD camera (H1280xV1080 pixels) accuracy: 0.013 mm/pixel; Cycle period: < 35ms | |
| Dimension | 1600*1600*1900(mm) | |
| Pickheads | 36 | |
| Important components | Imported DDR |
