SKD936H Turret Test Handler

SKD936H High Temperature Turret Test Handler is applicable for discrete devices, IC devices and other products with high-temperature testing needs, adding high-temperature testing capability on the basis of the original room-temperature performance to ensure stable performance. It is suitable for normal and high temperature test sorting and classification of PDFN /DFN / MSOP / SOT / SOP / SOD / TO / SMA/B/C and other components.

Category:

Products

Semiconductor Field

Test Sorting Equipment

Product Description

●Test components: 1-4 stations of high temperature (optional) + room temperature, heating temperature ≤ 180 ° (high temperature test comes with insulation design)

●Temperature control accuracy: heating temperature ≤ 180 °, temperature control accuracy of ± 3 ° C, PDFN5 * 6 as an example can be pr+eheated at the same time 96 pieces of material

●Pickhead feature shielding and automatic height correction functions.

●Automatic feeding (bowl in) : Bowl in, loading speed is fast and stable；

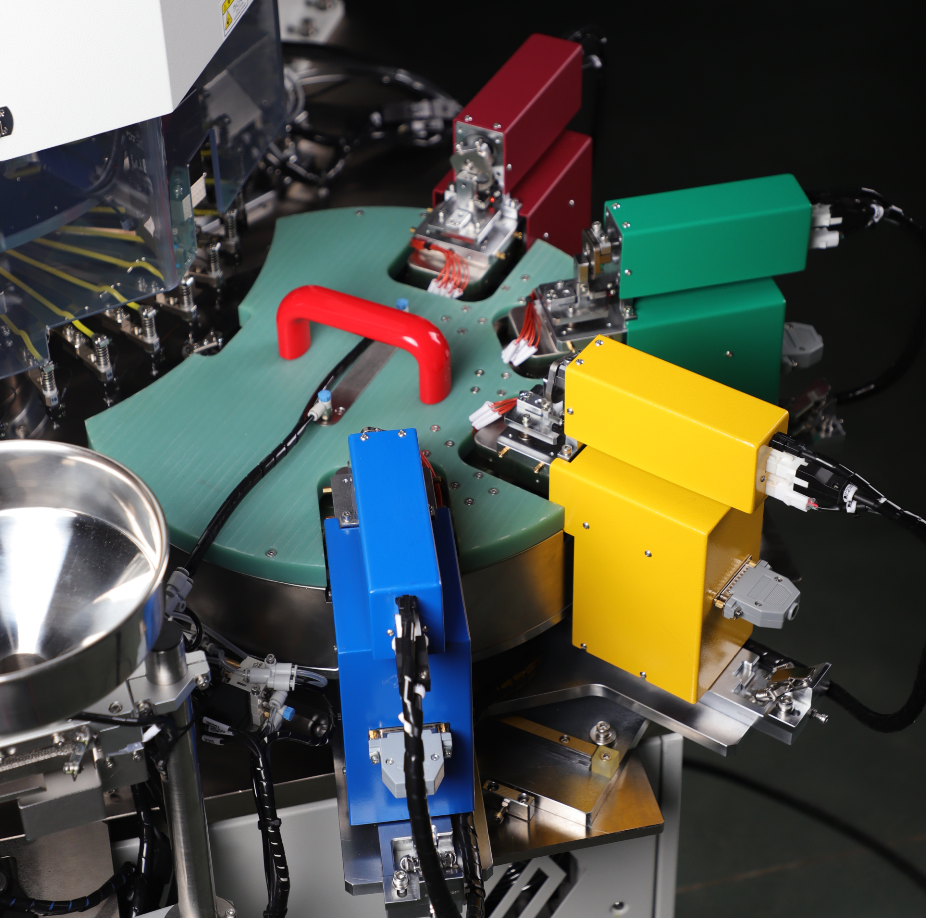

Main turret: The main turret is equipped with 36 pickheads driven by DDR motor, which can accurately send the product to the center of each station through the adsorption of the pickhead

●Orientation Aligner: accurate positioning and commutation of the product, positioning tolerance ≤ 0.005mm, directional accuracy up to 0.1 degrees

●Marking : the marking station can complete laser marking, vacuuming, marking vision inspection and other functions, greatly speeding up the marking speed；

●Tape out: In addition to automatic taping, it also has an automatic replacement function and sealing vision inspection.

●Vision inspection function after sealing(optional).

Important parts

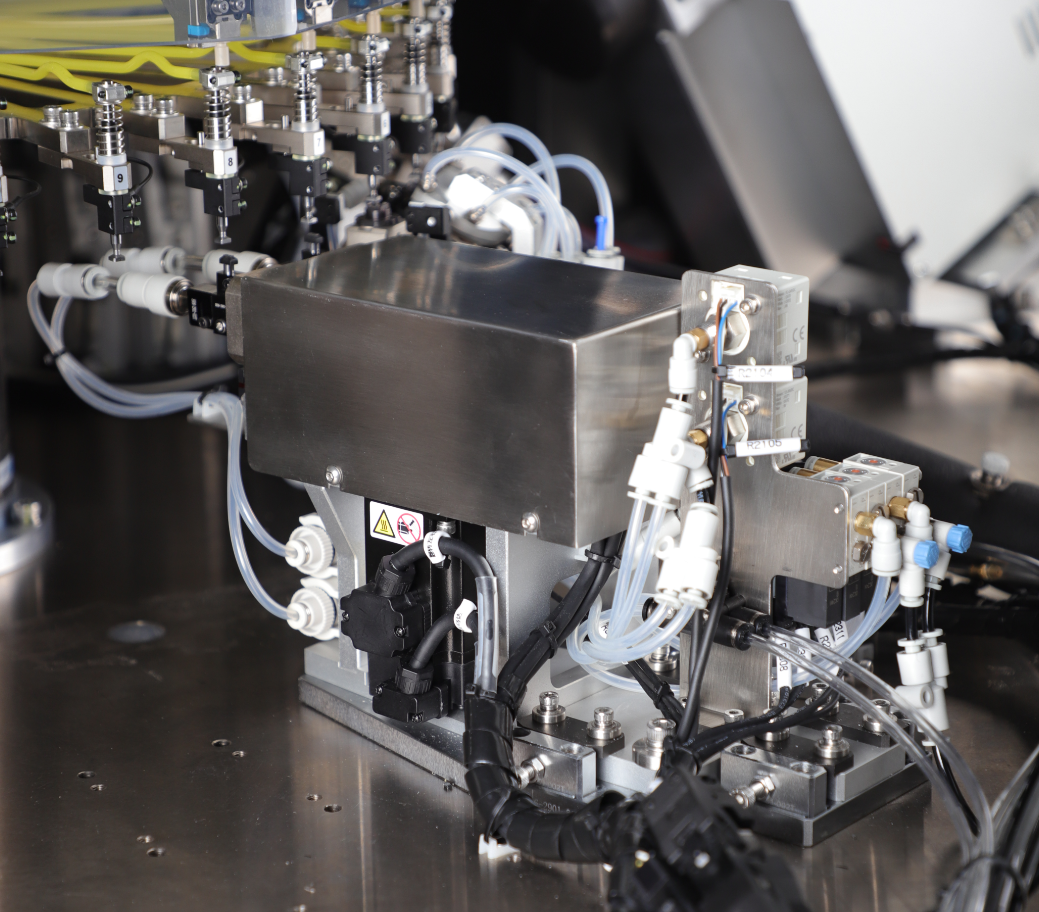

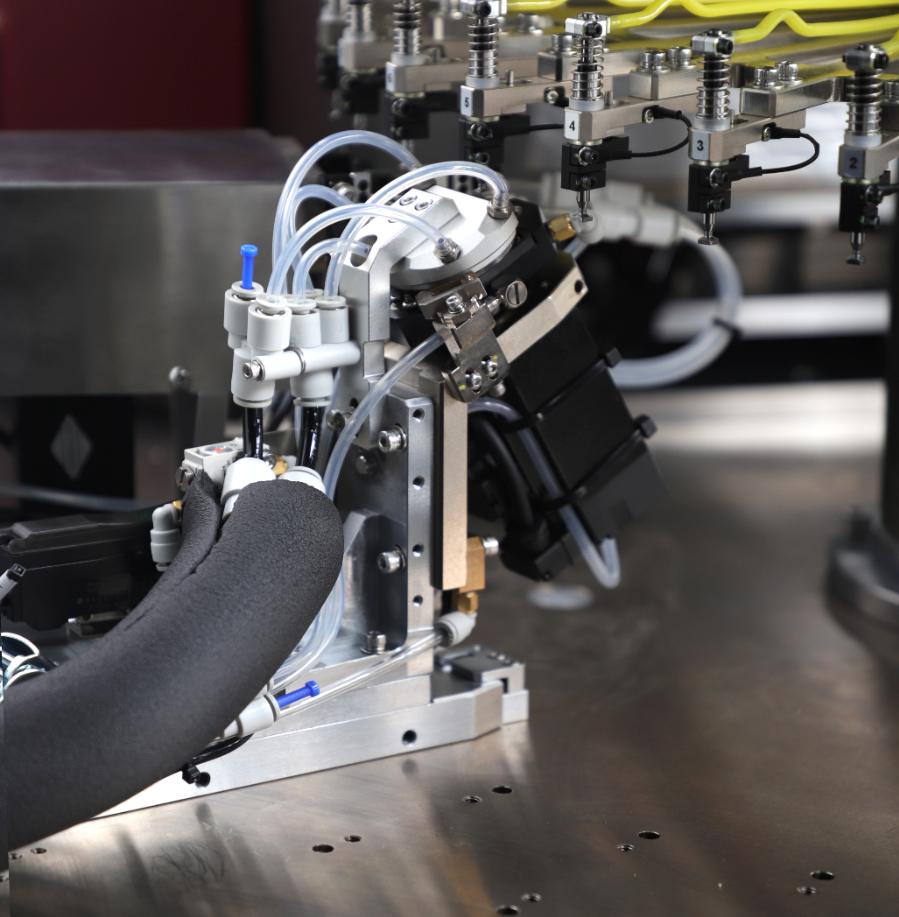

Sub-turret heating device, tested on a heating plate, with high accuracy of temperature control, with color poka-yoka.	Flip components to adjust device orientation. High speed and simple structure	Cooling sub-tray adopts vortex tube for a quicker cooling

Table parameters

	SKD936H Turret Test Handler
Suitable Components	PDFN, DFN, MSOP, SOT, SOP , SOD , TO , SMA/B/C, etc
UPH	Take DFN5*6 as an example, UPH≥10K(test time less than 200MS)
High Temperature Test Station	1-4 stations available
Contact Type	Pop-up type
Categorization	4+4+1
Onload	Bowl in/ Tube in
Offload	Tape out/Tube out
Stability	MTBA>60min MTTA<3min MTBF>168H
High Temperature Test Temperature	30~180℃±3℃
Atmospheric Pressure	0.4-0.7MPa
Vacuum	65Kpa
Power Source	AC220V /380V 50/60Hz
Marking parameters	10W laser marking equipment /20W pulse marking equipment(optional); Marking range :110mmX110mm\70mmX70mm; Wire carving speed :-7000mm/s, Minimum character :0.5y0.3; Qutput power:0-10Wt /20W optional
Lmage Parameter	Camera and resolution: 1.6-megapixel CCD camera, resolution H1440xV1080 pixels; accuracy: ≤0.015mm/pixel; cycle time: <50ms
Bus Program	High precision, fast speed, open all servo parameter Settings, convenient equipment debugging and monitoring; MTBA original data records, equipment operation logs, equipment fault alam codes and informationand other data are permanently stored
Pickheads	36
Important components	Imported DDR
