SKD980/SKD980-S Turret Test Handler

SKD980 turret test handler is applicable for multi-function testing and sorting ,it can meets the selection needs of more stations, flexible feeding mode , support flexible configuration of various discharge modes, can also meet more classification types and capacity needs of customers,and support the testing and sorting requirements of products with larger package size at the same time(TO220,TO263,TO252, etc.).

Category:

Products

Semiconductor Field

Product Description

●Mark Inspection Vision (2D Mark Inspection) recognizes and recodes marks, broken and redundant mark strokes, and marks that are outside of the plastic seal.

●3D5S can detect product size and integrity; it can also detect pin length, standoff height, offsets, pin width and pin spacing.

●In Pocket Vision (In Tape) detects defective products (defects visible to the naked eye) such as broken, contaminated and cracked plastic seals.

●Product transfer: main turret has 24 vacuum pickheads.

●The vacuum pickheads have the function of shielding and automatic height correction;

●Can be connected to a variety of brands of tester, software independent property rights, the use of key switches, standard keyboard for operation and data input, with workstation interlock function.

●Orientation Aligner: accurate positioning and commutation of the product, positioning tolerance ≤ 0.005mm, directional accuracy up to 0.1 degrees

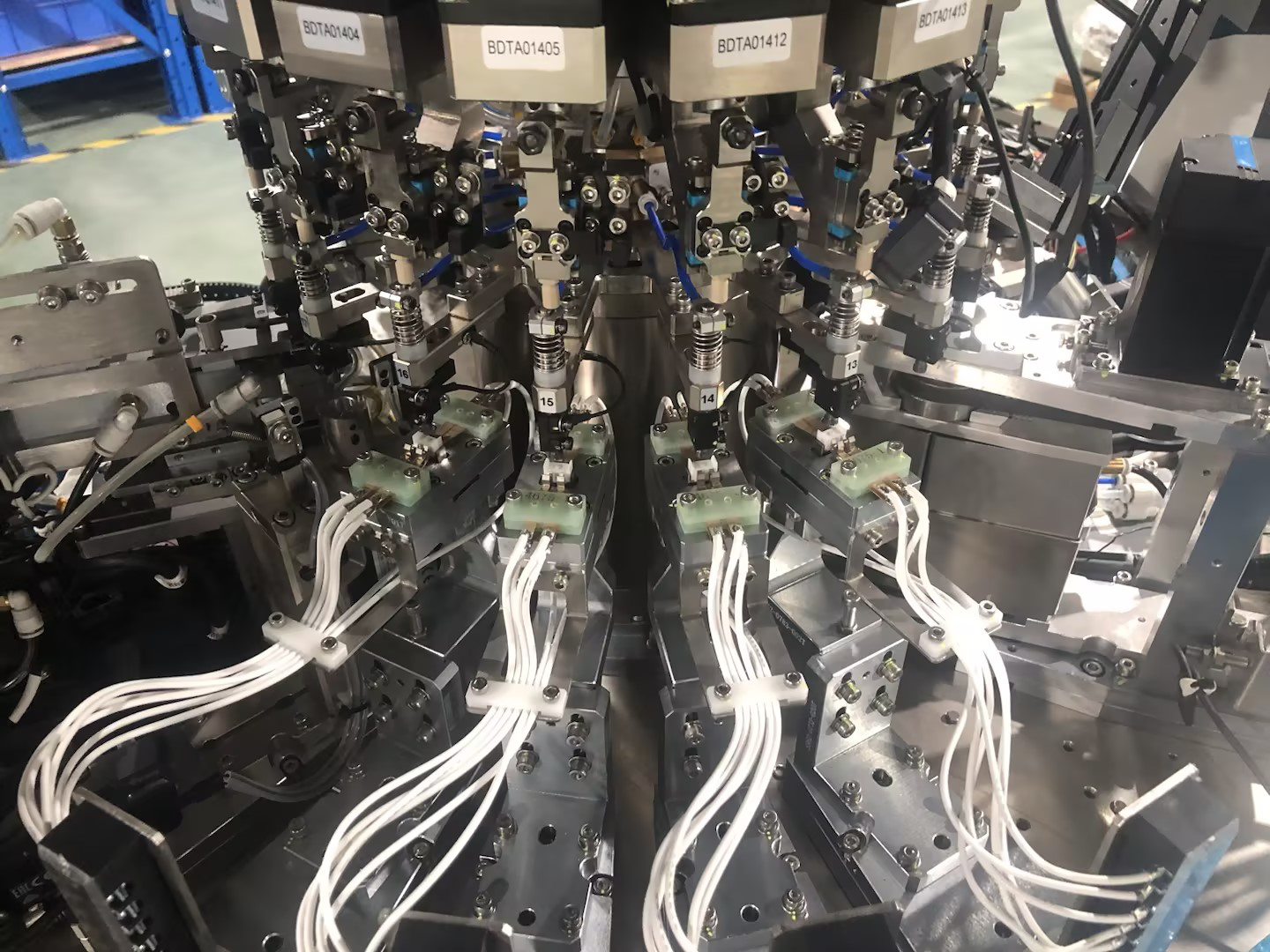

●Number of test stations：7 (5+2QA) stations elastic pressure contact Kelvin test station can complete the repeated test of the products to be taped, and the test accuracy is high；

●Packaging：TO252，dry run≥UPK=18k (no test or test marking times≤120ms).

Important parts

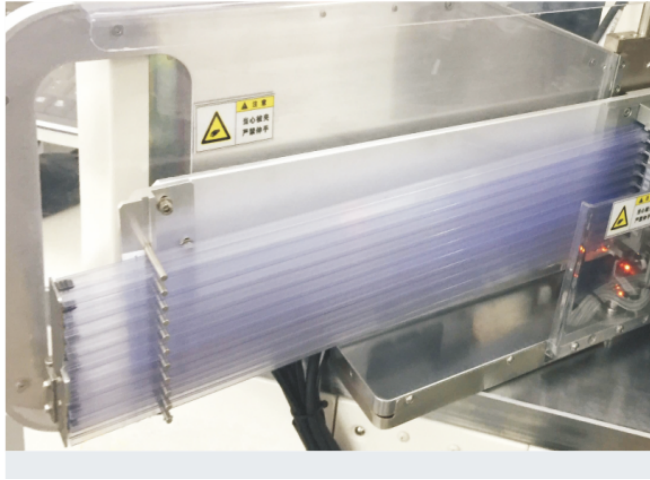

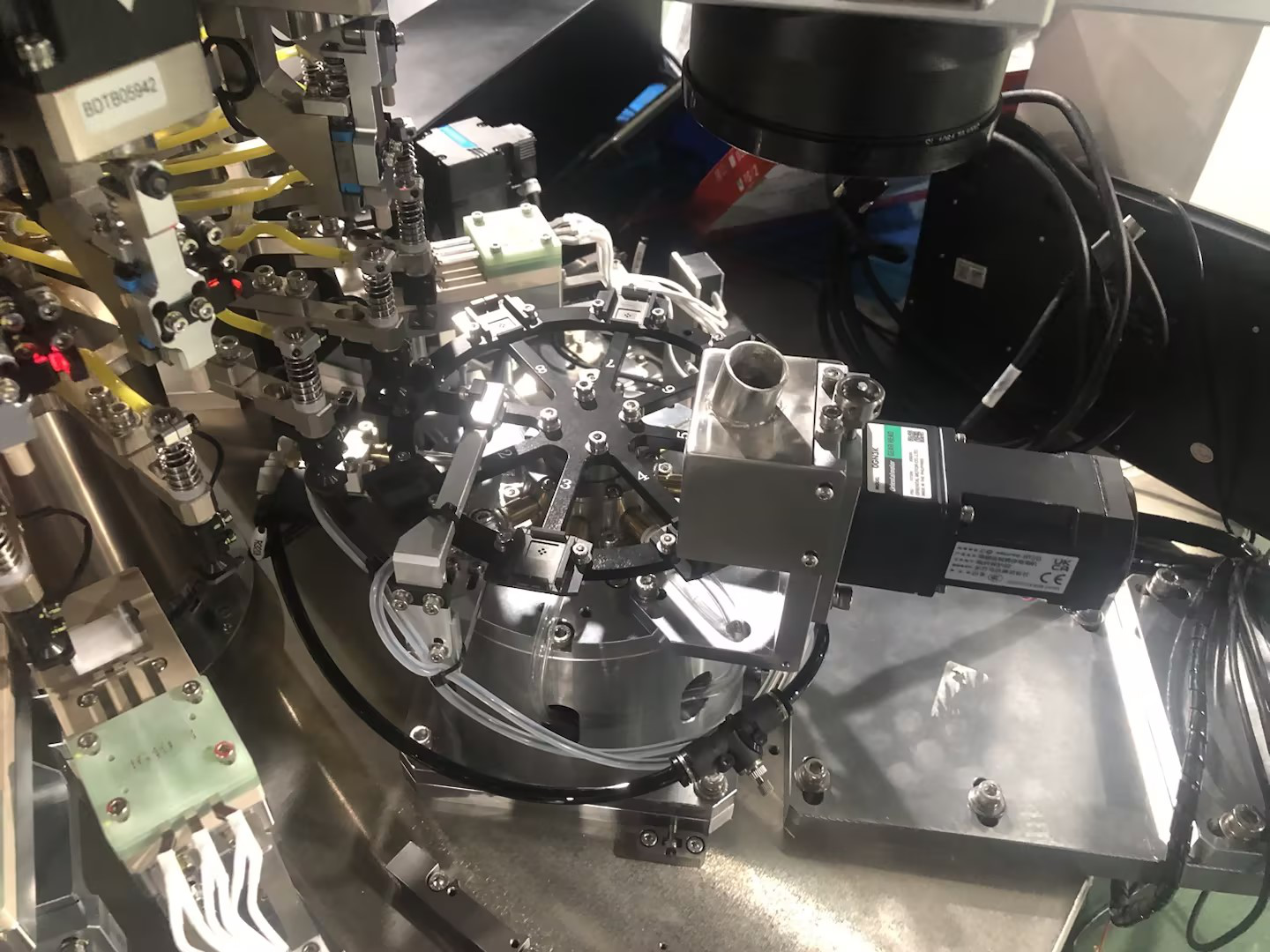

The sub-turret station adopts a large disk surface and multi-station method to improve marking efficiency and take into the large package products.	The test station has two options of pressure test and clamp test, taking into account the test requirements of different high-current and high-voltage products.	The tube sorting BIN adopts servo motor to control the screw and slider, with accurate positioning, high speed, high efficiency, and high number of tube-sorting.

Table parameters

	SKD980 Standard	SKD980-S High performance
Suitable Components	SOT23、SOT23-3/4/5/6/8、SOT323/363、SOT523/553/563、SOT89、SOT223、SOP4/5/7/8/10/12/14/16/20、MSOP8/10/12/14、MW601、TSSOP8/10/12/14/16/20/24、SOD323/123/123FL、DFN/QFN2X2-8X8、PDFN3X3-5X6、LGA、SMA/B/C、MBS、MBF、SMAF、SMBF、TO252、VSSOP8、TSCPAK5*7	SOT23、SOT23-3/4/5/6/8、SOT323/363、SOT523/553/563、SOT89、SOT223、SOP4/5/7/8/10/12/14/16/20、MSOP8/10/12/14、MW601、TSSOP8/10/12/14/16/20/24、SOD323/123/123FL、DFN/QFN2X2-8X8、PDFN3X3-5X6、LGA、SMA/B/C、MBS、MBF、SMAF、SMBF、TO252、VSSOP8、TSCPAK5*7
UPH	Max 36,000(test time is less than 30ms)(pcs/h)	Max 40,000(pcs/h)
Test station	Support 8-station testing	Support 8-station testing
Contact type	Pop-up type	Pop-up type
Sort	4+4+1	4+4+1
Loading	Bowl in/ Tube in/ Tape in	Bowl in/ Tube in/ Tape in
Unloading	Tape out/ Tube out	Tape out/ Tube out
press-down mode	Servo motor + cam / imported linear motor / domestic linear motor	Imported linear motor / Domestic linear motor
Force control accuracy	Force control can achieve ±10% (≥10N) / ±5% (2-10N, support adaptive calibration)	Force control can achieve ±5% (2-10N, support adaptive calibration)
Stability	MTBA>60min MTTA<3min MTBF>168H	MTBA>60min MTTA<3min MTBF>168H
Air pressure	Compressed air: 0.4 - 0.7 MPa Vacuum: > 65 KPa	Compressed air: 0.4 - 0.7 MPa Vacuum: > 65 KPa
Power supply	AC220V/380V 50/60Hz	AC220V/380V 50/60Hz
image parameter	Camera and resolution: 1.6 million CCD camera, resolution: H1440xV1080pixels; Accuracy: ≤0.015mm/pixel; Cycle period: <50ms	Camera and resolution: 1.6 million CCD camera, resolution: H1440xV1080pixels; Accuracy: ≤0.015mm/pixel; Cycle period: <50ms
Dimension	150013001900(mm)	150013001900(mm)
Pickheads	24	24
Important components	imported DDR	Imported high-speed DDR / Domestic high-speed DDR
