SKD860H gravity test handler

SKD860H test handler is a fully automatic sorting machine designed for IPM DIP series product package testing.

Category:

Products

Semiconductor Field

Test Sorting Equipment

Product Description

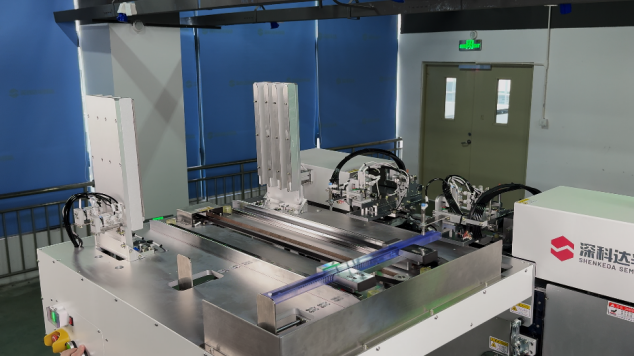

SKD860H test handler is a fully automatic sorting machine designed for IPM DIP series product package testing. The separator is equipped with multiple test stations in parallel with high temperature, which integrates high temperature heating, high temperature testing, product flipping, automatic BIN separation and function.

● Feeding method: mining tube stack feed, automatic refueling tube (stacking tank can stack 20 pieces);

● With DBC high temperature test mode nitrogen protection function;

● Preheating device: the use of air heater heating, heating temperature ≤ 175°, high efficiency double track preheating mechanism (accuracy ±3℃), with rapid cooling performance;

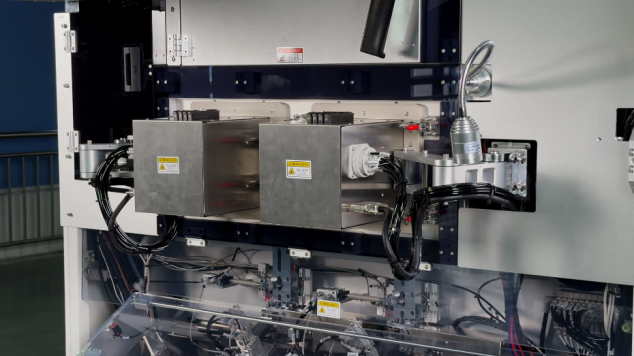

● High temperature test component: 2 stations high temperature test, heating temperature ≤ 175°, the test station is equipped with a separate device to improve the heating efficiency (accuracy ±3 ° C);

● Cooling device: the feeding track has the air cooling function;

● Turning station: the product test is completed with the turning function to ensure the direction of the product into the pipe;

● Parting position: driven by servo motor and designed by double parting shuttle mechanism, the mechanism is light, stable, accurate, fast and efficient;

● Feeding mode: 1 automatic material tube receiving mechanism, 5 NG manual tube mechanism, effectiv

Important parts

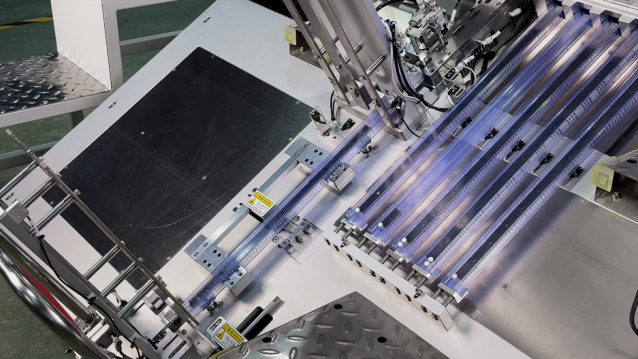

Both loading and unloading adopt the automatic switching of the material tube, which can be compatible with different sizes of the material tube.	Test station modular block disassembly structure, according to the size of the product change, replace the corresponding accessories can complete the change.	The receiving component is composed of 1 automatic measure and 5 NG bin, and the defective bin can be freely set the gear and quantity.

Table parameters

suitable package	IPM modules (such as DIP25, DIP28, SOP23, etc.)
UPH	Max 1000
High temperature test work station	2 high temperature test stations
High temperature test temperature	25-175 ℃
Test temperature accuracy	±3℃
Control system	PLC control system
loading	Double row stack automatic tube feed
unloading	1 automatic tube receiving mechanism, 5 bad grades
Ports	TTL
Power supply	AC220V±10% / 380V, 50HZ
Equipment power	9000W
Air Pressure	≥0.45-0.6MPa (clean, dry air)
Size	L1100W1300H2500(mm)
Weight	900KG
