torque motor
Published:
2022-08-15 09:01
Introduction to parameter characteristics of torque motor

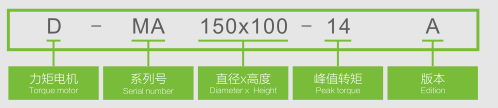

Naming rules for torque motors
D-MA200
Overall dimensions
technical parameter
Rated performance |
Symbol | Company | D-MA200X115-26A | D-MA200X115-26A | D-MA200X115-26A | D-MA200X115-26A | ||
---|---|---|---|---|---|---|---|---|
Peak torque (1s) | Tp | N.m | 26.0 | 47.0 | 75.0 | 100.0 | ||
Continuous torque | Tc | N.m | 11.2 | 18.9 | 28.6 | 37.5 | ||
Motor constant | Km | Nm/√W | 1.2 | 1.7 | 2.3 | 2.8 | ||
Electrical specifications | ||||||||
peak current | Ip | Arms | 8.0 | 8.0 | 8.0 | 8.0 | ||
Continuous current | Ic | Arms | 2.8 | 2.7 | 2.6 | 2.5 | ||
resistance | Rm | Ohms L-L | 6.3 | 9.0 | 12.5 | 16.1 | ||
inductance | L | Mh L-L | 25 | 44 | 69 | 90 | ||
Torque constant | Kt | N.m/Arms | 4.0 | 7.0 | 11.0 | 15.0 | ||
EMF constant | k | Vms/rad/s L-L | 2.3 | 4.0 | 6.4 | 8.7 | ||
Number of poles | 2p | 30 | 30 | 30 | 30 | |||
Maximum speed | n | rpm | 200 | 200 | 200 | 200 | ||
Mechanical specifications | ||||||||
Moment of inertia | J | kg.m2 | 0.0145 | 0.0159 | 0.0176 | 0.0194 | ||
Maximum axial load | Fa | N | 6500 | 6500 | 6500 | 6500 | ||
Maximum radial load | Ft | N | 3500 | 3500 | 3500 | 1300 | ||
Axial deflection | um | 40,20 or less | 40,20 or less | 40,20 or less | 40,20 or less | |||
Radial yaw | um | 10.0 | 12.0 | 14.5 | 17.0 | |||
Motor weight | Mm | kg | ||||||
Precision index | ||||||||
Absolute accuracy | Arc sec | ±35 | ±35 | ±35 | ±35 | |||
Repetition accuracy | Arc sec | ±2 | ±2 | ±2 | ±2 | |||
explain |
Motor model | Motor height | ||||||
Insulation class: Class F | D-MA200X115-26A | 115.00 | ||||||
Withstand voltage: 1700VAC/1min | D-MA200X130-47A | 130.00 | ||||||
Insulation: > 10Mohms/500VDC | D-MA200X150-75A | 150.00 | ||||||
Encoder: 22 bit absolute value | D-MA2000X170-100A | 170.00 |
D-MA150
Overall dimensions
technical parameter
Rated performance |
Symbol | Company | D-MA200X115-26A | D-MA200X115-26A | D-MA200X115-26A | D-MA200X115-26A | ||
---|---|---|---|---|---|---|---|---|
Peak torque (1s) | Tp | N.m | 14.0 | 24.0 | 37.0 | 50.0 | ||
Continuous torque | Tc | N.m | 5.1 | 8.6 | 13.0 | 17.0 | ||
Motor constant | Km | Nm/√W | 0.7 | 1.0 | 1.3 | 1.5 | ||
Electrical specifications | ||||||||
peak current | Ip | Arms | 17 | 29 | 45 | 59 | ||
Continuous current | Ic | Arms | 1.8 | 3.2 | 5.0 | 6.8 | ||
resistance | Rm | Ohms L-L | 1.0 | 1.8 | 2.9 | 3.9 | ||
inductance | L | Mh L-L | 20 | 20 | 20 | 20 | ||
Torque constant | Kt | N.m/Arms | 300 | 300 | 300 | 300 | ||
EMF constant | k | Vms/rad/s L-L | 1.0 | 1.8 | 2.9 | 3.9 | ||
Number of poles | 2p | 20 | 20 | 20 | 20 | |||
Maximum speed | n | rpm | 300 | 300 | 300 | 300 | ||
Mechanical specifications | ||||||||
Moment of inertia | J | kg.m2 | 0.0023 | 0.0026 | 0.0031 | 0.0035 | ||
Maximum axial load | Fa | N | 3000 | 3000 | 3000 | 3000 | ||
Maximum radial load | Ft | N | 1300 | 1300 | 1300 | 1300 | ||
Axial deflection | um | 40,20 or less | 40,20 or less | 40,20 or less | 40,20 or less | |||
Radial yaw | um | 40,20 or less | 40,20 or less | 40,20 or less | 40,20 or less | |||
Motor weight | Mm | kg | 5.2 | 6.4 | 7.8 | 9.6 | ||
Precision index | ||||||||
Absolute accuracy | Arc sec | ±45 | ±45 | ±45 | ±45 | |||
Repetition accuracy | Arc sec | ±3 | ±3 | ±3 | ±3 | |||
explain | Motor model | Motor height | ||||||
Insulation class: Class F | D-MA150X100-14A | 100.00 | ||||||
Withstand voltage: 1700VAC/1min | D-MA150X115-14A | 115.00 | ||||||
Insulation: > 10Mohms/500VDC | D-MA150X135-14A | 135.00 | ||||||
Encoder: 21 bit absolute value | D-MA150X155-14A | 155.00 |
D-MA170X50-10A
Overall dimensions
technical parameter
form name | Company | D-MA112X65-08A | |||
---|---|---|---|---|---|
Instantaneous maximum output torque |
N.m
|
10
|
|||
Continuous maximum torque | N.m |
4
|
|||
Maximum speed | rps |
4
|
|||
Rated speed | rps | 2 | |||
resistance | Ω |
8.9
|
|||
inductance | mH | 21 | |||
Moment constant | N/Arms | 3.4 | |||
Back potential constant | V/ms-1 |
290
|
|||
Continuous current | Arms |
1.5
|
|||
peak current | Arms |
4
|
|||
Polar logarithm | - | 10 | |||
Accuracy requirements | Encoder resolution | pulse/rev | 1536000 | ||
Absolute accuracy | arc-sec | ±26 | |||
Repetitive positioning accuracy | arc-sec | ±1.2 | |||
Number of origin pulses | pulse/rev | 1 | |||
maximum power | KVA | 0.35 | |||
Rated power | KVA | 0.1 | |||
rotor inertia | kg·cm² | 80 | |||
Allowable load Axial load (positive+) | N | 2000 | |||
N | 1200 | ||||
Allowable load Radial load (positive -) | Nm | 60 | |||
Mechanical accuracy of load mounting surface | um | 15 , 5 or less | |||
weight | kg | 5.8(3.6) |
D-MA112X65-08A
Overall dimensions
technical parameter
form name | Company | D-MA112X65-08A | |||
---|---|---|---|---|---|
Instantaneous maximum output torque |
N.m
|
8
|
|||
Continuous maximum torque | N.m |
3
|
|||
Maximum speed | rps |
4
|
|||
Rated speed | rps | 2 | |||
resistance | Ω |
4.7
|
|||
inductance | mH | 4.7 | |||
Moment constant | N/Arms | 2 | |||
Back potential constant | V/ms-1 |
166
|
|||
Continuous current | Arms |
1.5
|
|||
peak current | Arms |
5
|
|||
Polar logarithm | - | 10 | |||
Accuracy requirements | Encoder resolution | pulse/rev | 1048576 | ||
Absolute accuracy | arc-sec | ±26 | |||
Repetitive positioning accuracy | arc-sec | ±1.2 | |||
Number of origin pulses | pulse/rev | 1 | |||
maximum power | KVA | 0.3 | |||
Rated power | KVA | 0.1 | |||
rotor inertia | kg·cm² | 40 | |||
Allowable load Axial load (positive+) | N | 1000 | |||
N | 600 | ||||
Allowable load Radial load (positive -) | Nm | 30 | |||
Mechanical accuracy of load mounting surface | um | 25,15or less | |||
weight | kg | 2.8 |
