Test separator SKD980

Published:

2022-08-15 08:44

The dual display can rotate 270 °, and the front and back can be operated for easier control

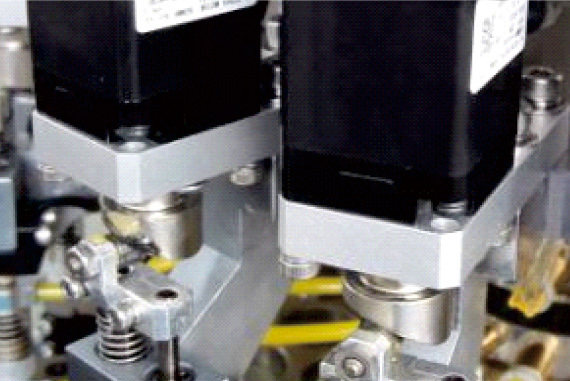

The downforce motor adopts servo motor, which has fast response, stability and high accuracy

The BIN mechanism of the pipe branch is driven by the lead screw, with a large number, fast production speed and low and stable failure rate

Technical parameters:

model	SKD980
Suitable for devices	TO252/TO251etc
Maximum capacity	22000 (test time less than 30ms) (psc/h)
Test station	Support 8-station test
Contact type	Shrapnel type
classification	3+3+1
Feed	Vibrating disc/tube
Discharge	Tape weaving/material pipe
Machine stability	MTBA>60minutes MTTA<30sec MTBF>168Hours
pressure	0.4-0.7MPa
vacuum	≥65KPa
Power Supply	AC220V 50/60Hz
Marking machine parameters	10W laser marking machine/20W pulse marking machine (optional); Marking range: 110mm × 110mmmm × 70mm； Line carving speed:~7000mm/s; Minimum character: 0.5<%=contentpcontent131221%>. 3; Output power: 0-10W/20W optional
Image parameters	Camera and resolution: 400000 CCD camera (H640 × V480 pixels)/1.6 million CCD camera (H1280 × V1080 pixels) Accuracy: 0.012mm/pixel: Cycle time:<35ms
Bus program	High precision, fast speed, open all servo parameter settings, facilitate equipment debugging and monitoring MTBA original data records, equipment operation logs, servo alarm codes and information and other data to permanently save data
Station	24 stations

Dimensions
